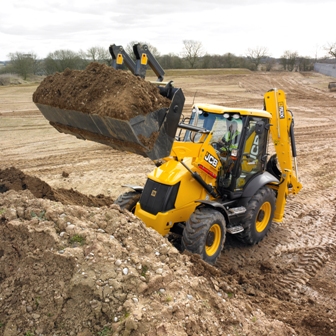

JCB's world beating range of backhoe loaders today moves further ahead of the competition with the unveiling of a new generation of machines which offer customers more versatility, productivity, cost efficiency and comfort.
JCB's pedigree in backhoe loaders stretches back to 1953 when the company first pioneered the machine. Over those six decades the company has pushed back the boundaries in backhoe development and now two in every five of these machines sold anywhere in the world are made by JCB.
Today at Bauma the wraps came off the most efficient JCB backhoe loader ever, offering customers average fuel savings ranging from six to 16% at typical daily work rates, largely achieved through the introduction of a new EcoDig system incorporating three hydraulic pumps.
Users will be hit immediately by the striking new design of the machine, which exudes ruggedness and strength thanks to a re-styled counterweight and new vertical grille pressings which offer an even more aggressive feel. The sharper lines on the excavator and loader profiles contribute to the robust look, while the sloping bonnet retains excellent forwards visibility.
In addition, the machines benefit from a host of new features including:
Improved cab for greater comfort
New heated front screen - an industry first for backhoe loaders
An in-cab hot drinks machine
Power brakes providing proportional braking and fuel economy improvements
Combined hammer and bi-directional circuit for excellent versatility in attachment use
A nine metre factory-fitted hose reel for improved productivity and versatility
JCB Group Managing Director for Product Development and Commercial Operations
Tim Burnhope said: "JCB has been at the forefront of backhoe design for almost 60 years and through innovation we continue to raise the bar and offer our customers machines which have superior performance and are more cost efficient and comfortable to operate.
"The new generation of JCB backhoe loader represents a significant investment and the result is JCB's most efficient backhoe loader ever which has been designed with fuel economy firmly in mind. Whether loading, roading or digging JCB's latest generation of backhoe offers the customer a machine that works harder but uses less fuel.
"We believe the new JCB backhoe will cement our position as the world's best selling brand in a market which we expect to grow significantly over the next five years."
Increased Productivity
The biggest changes are under the skin. A new EcoDig hydraulic system now utilises three hydraulic pumps to provide the same hydraulic output but at lower engine speeds, itself delivering average fuel savings of up to 15 per cent. Operators are able to select from two working modes, either Eco mode or low flow, to optimise productivity and improve machine control.
A secondary benefit of the three pump design is faster performance of the extradig extending dipper stick, further boosting productivity. The new hydraulic system and lower engine speeds also contribute to a cut in exhaust emissions and a reduction in overall machine noise levels, both inside the cab and externally.
The new backhoes come with the existing EcoRoad options of Smooth Ride System (SRS) and TorqueLock to help boost productivity still further. TorqueLock reduces fuel consumption by up to 25% while increasing speed by up to 10 % and the Smooth Ride System maximises load retention around site for increased productivity and operator comfort.
Power brakes are to be introduced on both 3CX and 4CX models. The system provides proportional braking throughout the pedal travel, providing operators with improved braking and reduced effort.
JCB has also redesigned the pedal box in the backhoe loader cab, with an automotive style position which improves ergonomics. The power brake design ensures that there is full brake pad release when the driver comes off the pedal. This enables operators to better maintain roading speeds and contributes to a further one per cent saving in fuel consumption.
By using the machine's hydraulic system to supply oil for the power brakes, there is no requirement for separate brake reservoirs. This simplifies service and reduces the number of daily checks for the driver.
JCB's EcoLoad package of options add to the enhanced productivity. The return-to-dig feature automatically resets the shovel to dig position, saving time and effort; the transmission disconnect diverts hydraulic power to the loader for faster lifting, while the Hydraulic Speed Control (HSC) gives more tractive effort when loading. In addition, high engine torque at low revs provides excellent pushing and hill climbing performance and limited slip differentials (LSD) provide extra traction in challenging conditions.
A new design and a new cab
The best-selling 3CX and 4CX ranges benefit from a striking redesign, incorporating sharper lines in the counterweight, grille and bonnet, and making best use of JCB's bold new livery. The cab adopts a similar style to the JCB Fastrac, with improved run-off channels to prevent rain water collecting on the roof. The machines also benefit from independently adjustable working lights at the front and rear of the roof, providing improved visibility all around the working area in poor light conditions.
The cab is refreshed internally too, with a move to a black interior in the lower half of the cab, including the seat, which has new material to provide increased comfort and less wear. The pillars and roof lining adopt a lighter grey colour, making the cab feel even more light and spacious.
JCB engineers looked for innovation in every detail in the cab, and have found a new material to cover the redesigned steering wheel, offering improved grip for the driver. There is also a more ergonomically designed spinner knob on the wheel. The backhoes also benefit from new high quality switches, activating consoles which provide excellent light definition. The high quality switches have laser etched images that are clearly backlit, enabling clear visibility of switches at night.
JCB will be taking a lead from the automotive industry with the option of an innovative automatic heated front windscreen on all 3CX and 4CX models later this year. Available in time for winter 2010, the heated windscreen rapidly clears ice and misting in cold conditions, allowing the operator to get to work without delay in the morning.
Attachment Availability
A new combined hammer and bidirectional auxiliary circuit makes the fitting of attachment power circuits easier. The circuit has been designed to provide low flow and high flow across all 3CX and 4CX models, including all fixed and extending dipper variants. This greatly increases versatility for the customer as the machines are compatible with an increased number of optional attachments.
There is also the option of a new 9m hose reel on the Hand Held Tool Circuit, that allows contractors to use hydraulic power tools alongside the backhoe loader, removing the need for separate power packs.
Taking A Break
JCB has always been at the forefront of backhoe loader design and production, leading the world in innovation and machine performance. Yet sometimes it is the small things that matter most to the operator.
In the 1970's JCB took the time to think of the operator first, supplying a kettle as an option with each machine so that the driver could make a hot drink even when away from the site facilities.
Now JCB is to revive this link with the past. All 3CX and 4CX models will be available with an optional hot drinks machine, capable of producing tea or coffee, that will lock securely into an area at the side of the cab. The machine uses the 12V supply directly from the machine and has
been designed to fit into the existing cab layout.
